        Technical Data





  • Length - 1050mm (41.3")
  • Width - 140mm (5.5")
  • Height - 417mm (16.4")
  • Weight - appx. 2800g (6.2lbs)
  • Gear Ratio - 9.8 : 1 : 5
  • Main Rotor Diameter - 1220mm (48.0")
  • Tail Rotor Diameter - 230mm (9.6")
  • Main Rotor Head - Seesaw Type
  • Control System - Bell-Hiller w/adj. pitch
  • Tail Drive System - Shaft Drive
  • Engine - .30 class
  • Radio - min. 5ch radio for helis w/5 servos & 1 gyro

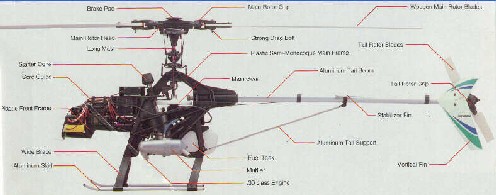

Nexus 30 S Type S Parts

Click on picture for a larger view


Want to upgrade to the Nexus Deluxe Version? Here's what you'll need:
KYOE5509 main blades
$ 45.00
KYOE1320 m.l. bearings
$ 21.99
KYOE5503 feathering shaft
$ 21.99
KYOE1125 swashplate
$ 45.99
KYOE5501 seesaw stabilizer
$ 11.99
KYOE6180 aileron control lever
$ 12.49
KYOE1300 stab. bearings
$ 12.99
KYOE2216 elev cont lever bearing
KYOE5505 main rotor head body
$ 11.99
KYOE6200 pitch slide set
$ 18.99
KYOE5513 mixing lever set
$ 23.49
KYOE2270 p.s. bearings
$ 11.99
KYOE3110 tail pitch slider bearings
$ 11.49
KYOE6290 tail wire guide pipe
$ 7.49
KYOE1135 thrust bearings
$ 22.99
Total: $280.87 +
